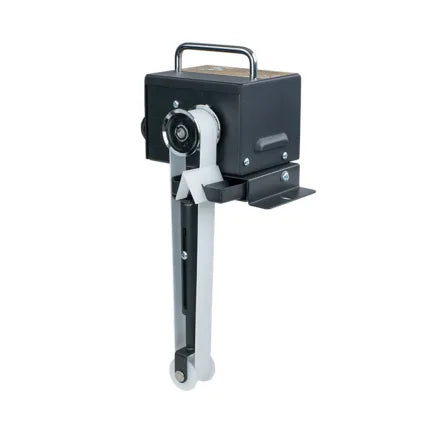

Zebra Skimmers: Tramp Oil Belt Skimmer (BPF2-24 2"x24")

Zebra Skimmers: Tramp Oil Belt Skimmer (BPF2-24 2"x24")

by Keller-Heartt
SKU BPF2-24
$641.11 - $641.11
$641.11
$641.11 - $641.11
$641.11

The Zebra Tramp Oil Belt Skimmer is simple, reliable and features easy vertical access. We offer lifetime warranties on the tramp oil belt skimmer’s dual wiper set and limited warranties on all other parts. This unit features our polyurethane belt. Find stainless info here.

Part Number: BPF1-* (where ‘*’ is the belt reach in inches. Standard sizes are 08″, 12″, 18″, 24″). How do you determine reach? click to learn more.

  • Heavy-duty construction
  • Max fluid temperature: 40-80°F
  • Continuous-duty, fan-cooled motors (120v or 220v)
  • Removable collection tray
  • Rated capacity: 1″ belt – 1 gal per hour, 2″ belt – 2 gal per hour
  • Fixed lower pulley (on reaches to 24″)
  • Hanging lower pulley (on reaches 36″ and up)
  • Dual wiper set with lifetime end user warranty (1 set per 12 month period)
  • Warranties: 90-days on polyvinyl belts (standard per part numbers above)
  • 220VAC (200-240VAC), 50/60 Hz models available by adding “E” to the end of the part number
Show More Less

Frequently asked questions

Find answers to common questions about our products and services

  • This unit uses a 2" belt, which is rated to remove 2 gallons of tramp oil per hour. For reference, a 1" belt model is rated at 1 gallon per hour.

  • This skimmer is rated for fluid temperatures between 40°F and 80°F. Applications outside this range would require a different model.

  • This skimmer uses a polyurethane belt, which carries a 90-day warranty. The dual wiper set comes with a lifetime end-user warranty covering one replacement set per 12-month period, and all other parts carry a limited warranty.

  • Yes. The standard unit runs on 120V, but a 220VAC (200–240VAC), 50/60 Hz version is available by adding "E" to the end of the part number when ordering.

  • On this 24" reach model, the lower pulley is fixed in place. Units with a reach of 36" or greater use a hanging lower pulley design instead.

  • Standard reach sizes are available in 8", 12", 18", and 24". If you are unsure which reach you need, Zebra Skimmers provides a guide for determining the correct reach for your specific setup.

Key Features

  • Heavy-duty construction with easy vertical access delivers simple, reliable tramp oil removal from coolant sumps and tanks

  • 2" polyurethane belt provides a rated capacity of 2 gallons per hour

  • Continuous-duty, fan-cooled motor available in 120V or 220V (200-240VAC, 50/60 Hz) for flexible installation requirements

  • Removable collection tray for convenient oil disposal; includes a fixed lower pulley design on reaches up to 24"

  • Dual wiper set backed by a lifetime end user warranty (one replacement set per 12-month period); 90-day warranty on polyvinyl belt
