IBC Tilt Stand with Fork Pockets and Adjustable Legs - 4400 Lb. Capacity

IBC Tilt Stand with Fork Pockets and Adjustable Legs - 4400 Lb. Capacity

by Keller-Heartt
SKU WBB2396355
$1,245.00 - $1,245.00
$1,245.00
$1,245.00 - $1,245.00
$1,245.00

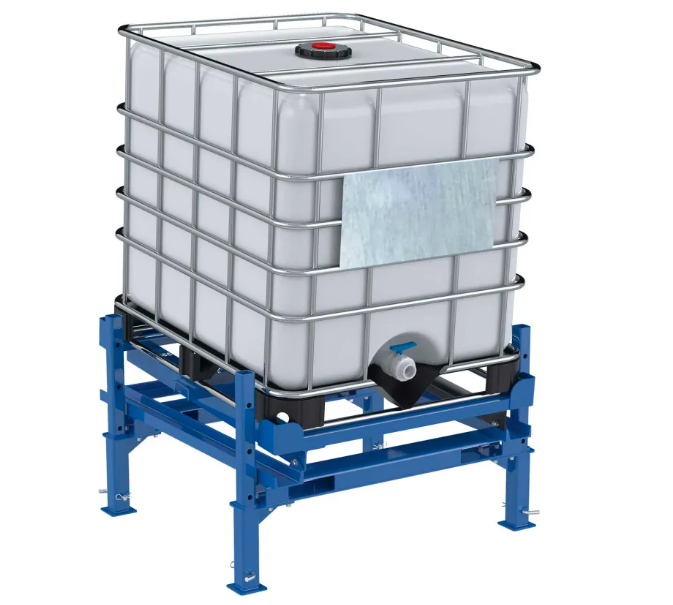

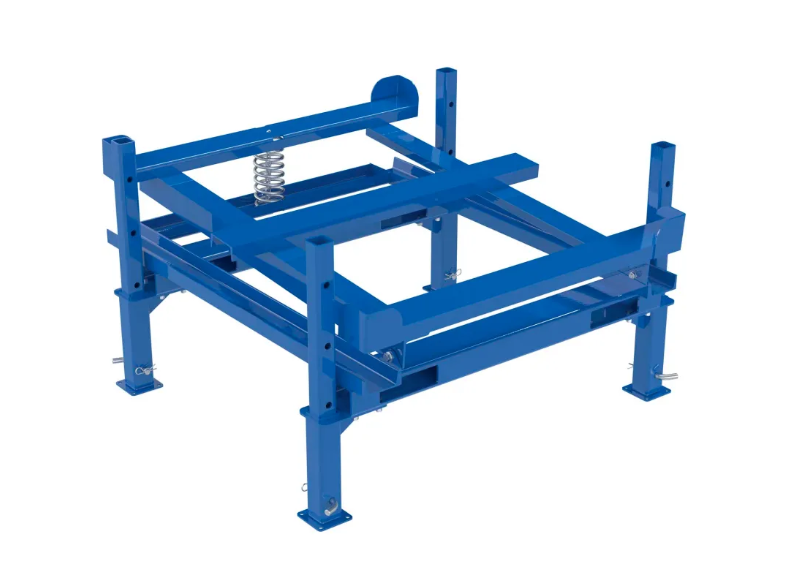

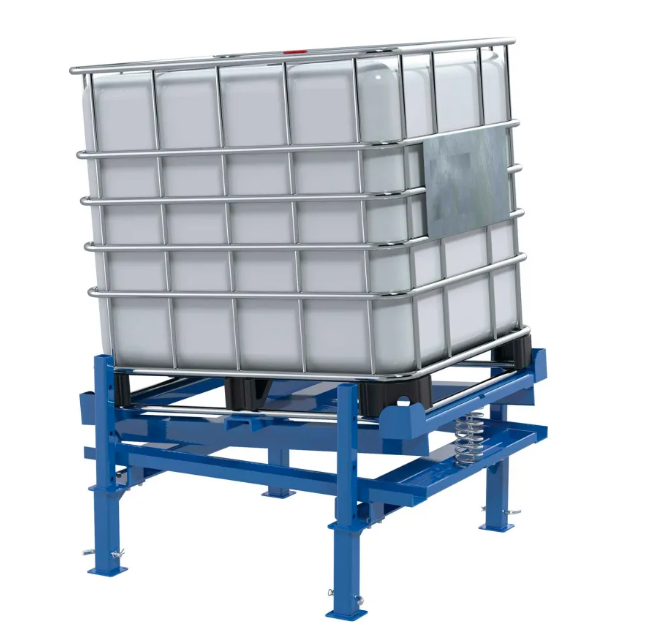

Intermediate Bulk Container (IBC) IBC-TLT-FPL Tilt support stand is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. The adjustable height (6" Increments) of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids. The stand has pre-drilled mounting holes for simple mounting to a variety of surfaces and fork pockets for simple movement, if necessary.

Features:

  • Platform Height: 23-1/4" Raised; 19-1/2" Lowered
  • Fork Pockets: 2" x 7" on 27" Centers
  • Maximum Platform Tilt Degrees: 5
Show More Less

Frequently asked questions

Find answers to common questions about our products and services

  • No manual tipping is required. As fluid drains from the container, the rear of the stand platform naturally rises on its own, creating an angle of up to 5 degrees that promotes a more complete release of fluids without any additional effort.

  • The stand is specifically designed so that the passive tilt achieved during draining — up to 5 degrees — directs fluid toward the valve for complete drainage. The tilting begins automatically as the container empties and the rear of the platform rises.

  • Yes. The stand includes fork pockets sized at 2" x 7" on 27" centers, allowing a forklift to engage and relocate the stand with a container in place when needed.

  • The platform height adjusts between 19-1/2" (lowered) and 23-1/4" (raised) in 6-inch increments. This range is designed to provide easy access to the IBC's valve connections while minimizing user bending and twisting during the draining process.

  • Yes. The stand includes pre-drilled mounting holes that allow it to be bolted down to a variety of surfaces for a fixed installation, while the included fork pockets also allow it to be repositioned if a permanent mount is not needed.

  • The stand is built from steel construction and is rated for a 4,400 lb. capacity, making it suitable for supporting fully loaded Intermediate Bulk Containers during the draining process.

Key Features

  • Sturdy steel construction provides a secure tilting platform rated for up to 4,400 lb. capacity, ensuring reliable support for fully loaded intermediate bulk containers

  • Adjustable platform height in 6" increments (19-1/2" lowered to 23-1/4" raised) delivers easy access to valve connections while reducing user bending and twisting

  • As fluid drains, the rear of the stand platform automatically rises to create a tilting angle of up to 5 degrees, promoting a more complete release of fluids from the container

  • Fork pockets (2" x 7" on 27" centers) allow the stand to be safely repositioned by forklift whenever needed

  • Pre-drilled mounting holes enable simple, secure attachment to a variety of surfaces for a stable installation
